Condition Used
Part #: 252234

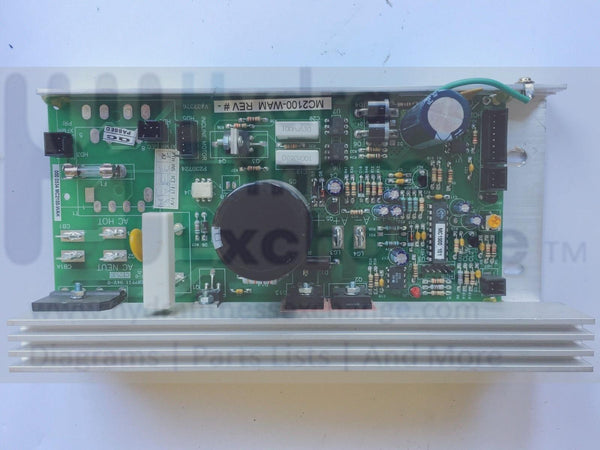

Part Name: CNTRLR,MC2100WAH,ARPS,NO C&P
Installation Guidelines:
1) Unplug unit from wall outlet
2) Remove Motor hood and disconnect control board, keep track of connections.
3) Dismount old board and mount new one.
4) Reverse the leads disconnected in step 2
5) Plug in Machine and calibrate the unit, search you tube search "calibrate icon treadmill" for instance.
Speed Control Board Used on the following models:
Epic
475 MX - EPTL091060
475 MX - EPTL091062
View 550 - ECTL097060
View 550 - EPTL097060
View 550 - EPTL097061
View 550 - EPTL097062
View 550 - EPTL097063
View 700 - EPTL141060
View 700 - EPTL141062
Gold's Gym
Preview 1000 - GGTL096070
Preview 1000 - GGTL096071
Preview 1500 - GGTL146070
Preview 1500 - GGTL146071
HealthRider
Outlook - HRTL894060
Outlook - HRTL894061
Outlook - HRTL894062
ADVANCED 2200 - IMTL941060
ADVANCED 2200 - IMTL941061
ADVANCED 2200 - IMTL941062
Lifestyler
1500 - 831.296253
NordicTrack®
1500 - NCTL097070
1500 - NTL097071
1500 - NTL097072
1500 - NTL097073
1500 - NTL097074
1500 - NTL097075
1600 - NTL145060
C2300 - 831.294990
C2300 - 831.306010
Elite 3200 - NTL219050
Elite 3200 - NTL219051
Elite 3200 - NTL219052
Elite 4200 - NTL198060
Elite 4200 - NTL198061
Elite 4200 - NTL198062
Elite 4200 - NTL198063
Elite 4200 - NTL198064
Elite 4200 - NTL198065
EXP 3000xi - NTTL15901
T14vt - NTL170090
Viewpoint 2800 - 831.296110
Viewpoint 2800 - 831.296112
Viewpoint 2800 - 831.296113
Viewpoint 2800 - 831.306020
Viewpoint 2800 - NTL149050
Viewpoint 2800 - NTL149052
Viewpoint 2800 - NTL149053
Viewpoint 3000 - 831.246110
Viewpoint 3000 - 831.246111
Viewpoint 3000 - 831.246112
Viewpoint 3000 - 831.307040
Viewpoint 3000 - 831.307044
Viewpoint 3000 - NTL118060
Viewpoint 3000 - NTL118061
Viewpoint 3000 - NTL118062
Viewpoint 3200 - 831.296180
Viewpoint 3200 - 831.296181
Viewpoint 3200 - 831.296182
Viewpoint 3500 - NTL130070
Viewpoint 3500 - NTL130071
Viewpoint 8500 - NTL229070
Viewpoint 8500 - NTL229071
Proform
480PI - 831.291606
Prespective 1.0 LX - PFTL911050
Prespective 1.5 - PFTL877060
Prespective 1.5 - PFTL877061
Prespective ES - PFTL998060
Prespective ES - PFTL998061
Prespective ES - PFTL998062
Prespective ES - PFTL998063
Prespective ES - PFTL998064
Pro Series 1500 - PFTL941050
Pro Series 1500 - PFTL941051
VISTA - PF500100
Reebok (Icon)
9500 ES - RBTL145060
9500 ES - RBTL145061
9500 ES - RBTL145062
9500 ES - RBTL145063
9500 ES - RBTL145064
Vista - RBTL133050
Vista - RBTL133052
Vista 8500 - RBTL099060
Vista 8500 - RBTL099061
Vista 9700 - RCTL097070
Weider
Black 160 XTB - WBTL146080
