Item Condition: New

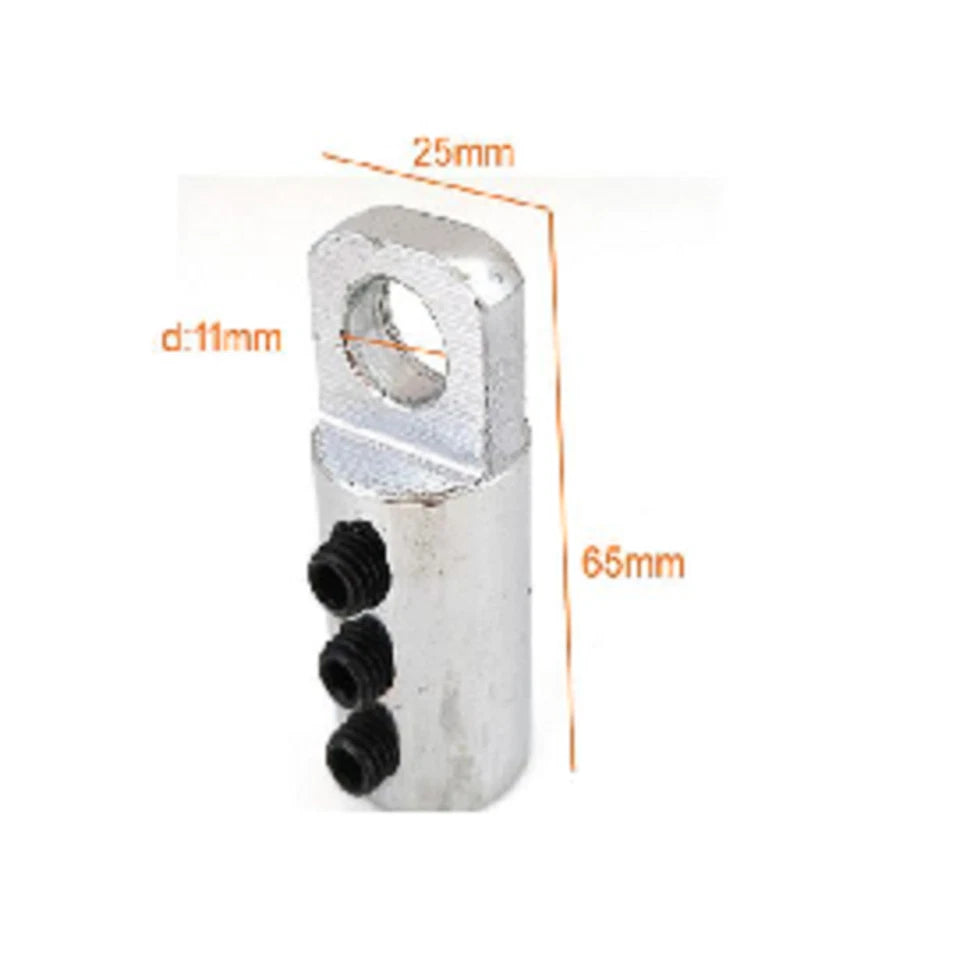

Home Gym Cable Connector with 3 screws Size 65 x 25mm Steel Rope Strength System
"Have fitness repair parts to Sell?"
Use our wizard and list them for FREE on our exchange
OR
Sell them lot to us using this form
If so, have your model/serial number from your frame ready and click here.
Item Description
Condition New
3-Set Screw Cable Connector (Eye Terminal) – Home Gym Steel Rope Connector
Designed for strength, adjustability, and ease of installation, this 3 set screw cable connector with eyelet is a reliable solution for securing steel rope in home gym cable systems. It provides a strong mechanical grip without the need for swaging—making it ideal for repairs, rebuilds, and custom setups.
🔩 Key Features
-
Triple Set Screw Locking System
Three hex screws clamp the steel cable evenly, creating a secure and balanced hold. This type of screw-based clamping is widely used to hold cables firmly in place by applying pressure directly onto the wire rope. -
Integrated Eye Loop Connector
Built-in eyelet allows easy connection to carabiners, chains, or attachment hardware. -
No Crimping Required
Eliminates the need for hydraulic tools—simple hex key installation. -
Heavy-Duty Steel Construction
Designed for repeated load cycles in gym cable systems.
🏋️ Applications
- Home gym cable repairs and rebuilds
- Steel wire rope termination (4mm–6mm cables)
- Functional trainers and pulley systems
- Connecting attachments (handles, bars, ropes)
3-screw connectors are commonly used in gym equipment because they provide a fast, secure way to attach cables without permanent swaging and are compatible with multiple cable sizes like 4–6mm.
📐 Specifications
- Type: Set screw cable connector with eye
- Material: Steel (zinc plated or coated)
- Locking Mechanism: 3 hex set screws
- Cable Compatibility: Typically 4mm, 5mm, 6mm
- Installation Tool: Allen / hex key
- Design: Cylindrical body with integrated eye loop
🛠️ How to Use
-
Insert Cable
Slide the steel cable fully into the connector body. -
Align Position
Adjust cable length and ensure proper positioning. -
Tighten Set Screws
Secure all three screws evenly for maximum grip. -
Test Under Load
Apply tension to confirm a solid, slip-free connection.
✅ Benefits
- Quick and easy cable installation
- No specialized crimping tools required
- Reusable and adjustable
- Strong and reliable for gym applications
