Item Condition: New

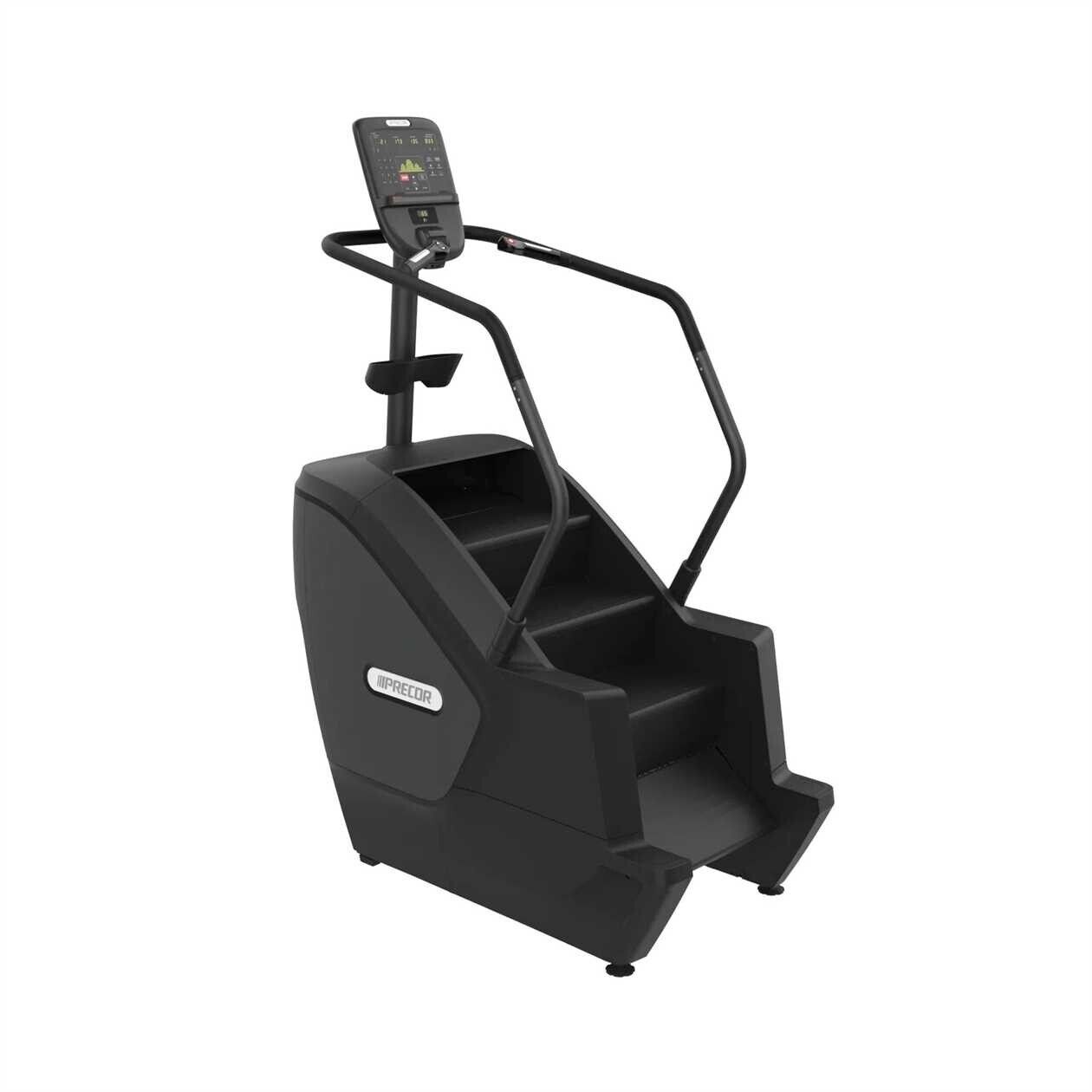

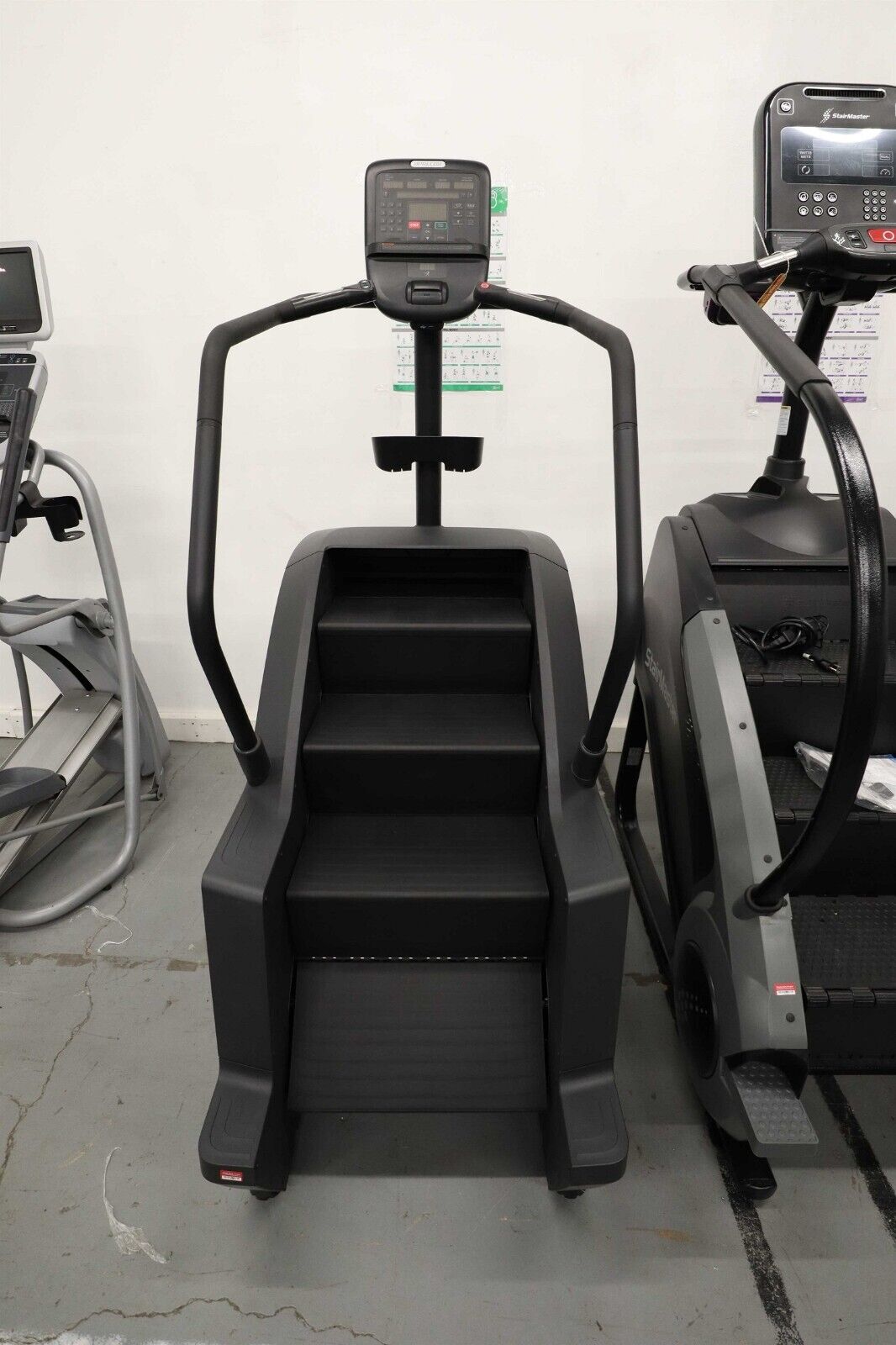

New (other) Precor SCL 835 Stair Climber AXPN Stepper
"Have fitness repair parts to Sell?"
Use our wizard and list them for FREE on our exchange
OR
Sell them lot to us using this form
If so, have your model/serial number from your frame ready and click here.
Item Description
Condition New
Transport Wheels
Integrated wheels with lift handholds for easy transport
Handrails
Ergonomic handrails encourage good posture and proper technique
Covers
Front and side covers can be removed in less than 2 minutes, with 0 screws, providing quick access to stair assembly, EMS brake and electronics.
Cable Management
Optional
Drive system
Low friction, two-stage drive system with a proven electro-mechanical EMS braking system
Water Bottle and Accessories Holder
Accessories holders for water bottle, reading communication devices and portable music player.
Frame
Two-step powder coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Locking Auto Stop
Step sensor detection automatically stops moving stairs when exerciser steps off, locking the steps in place
Auto-detect Stop
If an object passes by the IR sensor below the bottom step, the steps will automatically stop.
Front Handlebar Controls
Integrated motion control buttons, contact heart rate grips, and STOP key
Rest Platforms
Dual integrated exerciser step-off rest platforms
Dynamic Step Control
Ensures an accurate, consistent step rate, whether slow or fast, for exercisers of all sizes.
Drive Step Chain
428 O-ring motorcycle step chain is virtually maintenance free
Step Rate Range
20 to 165 steps / min
Step Rate Levels
30 levels in 5 step/min increments
POWER REQUIREMENTS
Equipment
Powered
International 240 VAC
Applicable country-specific power cord
Personal Viewing Screen (PVS)
Powered
U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle
CONSOLE FEATURES
Console Type
Advanced LED
Numeric Keypad
Yes
Motion Controls
Yes; Steps/Min
QuickStart™
Yes
Tactile Dome Keys
Yes
Tap Control
Yes
Console Language(s)
English, French, German, Hebrew, Italian, Japanese, Portuguese, Russian, Spanish
Units Selection
Metric and U.S. Standard
Maximum Pause Time (Pause)
120 seconds
Electronic Readouts - StairClimber specific
Steps/Min, Average Steps/Min, Total Steps, Floors, Elevation Gain, Step Rate Levels (1 - 30)
Maximum Workout Time
240 minutes
Number of Preset Workouts
10
Preset Workouts
Milestones (3), Intervals (HIIT and Custom), HRC, Aerobic Training, Manual, Fit Tests (WFI and CPAT)
Electronic Readouts
Distance, Calories, Heart Rate, Time Remaining, Time Elapsed, Time in Zone, Segment Time Remaining, Average Step Rate, Calories / Minute, Watts, METs, Target HR, Average HR, Max HR
HEART RATE MONITORING
Touch
Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.
Telemetry
Equipped for heart rate telemetry reading using a chest strap.
Heart Rate Sensor Advisory
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
NETWORK CAPABILITIES
Diagnostics
Ability to set club parameters, e.g. to limit exercise time and pause time.
CSAFE Enabled
Yes
EQUIPMENT DIMENSIONS AND WEIGHT
Height with PVS
90 inches / 229 cm
Length
59 inches / 150 cm
Width
31.7 inches / 81 cm
Height
84 inches / 213 cm
Equipment Weight
375 lbs (170 kg)
SHIPPING DIMENSIONS AND WEIGHT
Length
63 inches / 160 cm
Width
37 inches / 94 cm
Height
50 inches / 127 cm
Shipping Weight
400 lbs / 182 kg
EQUIPMENT SPECIFICATIONS
Maximum User Weight
400 lbs / 182 kg
Step-up Height
12 inches / 30 cm
Recommended Ceiling Height:
9' 9" / 3.0 m
Total Workouts
10
Step Height (inches / cm)
8 inches / 20 cm
Step Width (inches / cm)
20.8 inches / 53 cm
Step Depth (inches / cm)
11 inches / 28 cm
Step Area (sq inches / sq cm)
229 sq inches / 1,484 sq cm
Standard Frame Colors
Storm Grey
Black Pearl
