Item Condition: Used
Technogym Treadmill AC Srl AC Induction Motor E490695 EOS 71C6 N0000102AB
"Have fitness repair parts to Sell?"
Use our wizard and list them for FREE on our exchange
OR
Sell them lot to us using this form
If so, have your model/serial number from your frame ready and click here.
Item Description
Condition Used

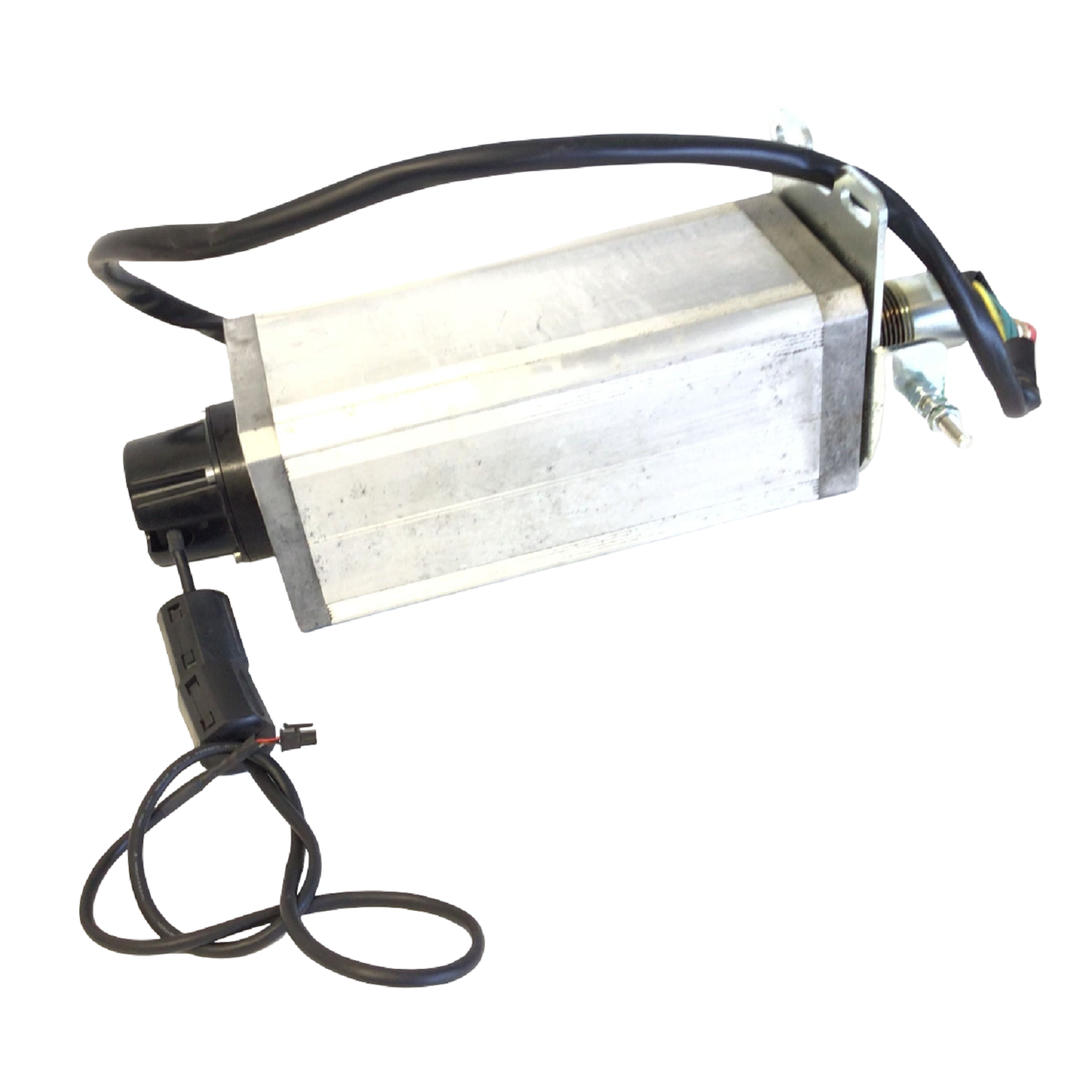

- Technogym AC Induction Motor with P/N N0000102AB features the EOS 71C6 frame and B14 face mount, providing a replacement motor designed for compatible commercial fitness equipment requiring this specification.
- Engineered with a 1.0 kW output, 1200 RPM rated speed, 6-pole design, and continuous S1 duty cycle, this AC motor supports dependable operation in compatible commercial treadmill applications.
- Equipped with an integrated 1024 PPR encoder, this replacement motor provides precise speed and position feedback for compatible variable frequency drive systems used in commercial fitness equipment.
- Featuring a B14 face mount, EOS 71C6 frame, Class F insulation, IP44 rating, and 15 kg construction, this replacement motor is designed to match the listed mechanical specifications for compatible equipment.
- Offered by a U.S.-based seller with customer support available from within the United States. Support is provided for product-related inquiries in accordance with marketplace policies.

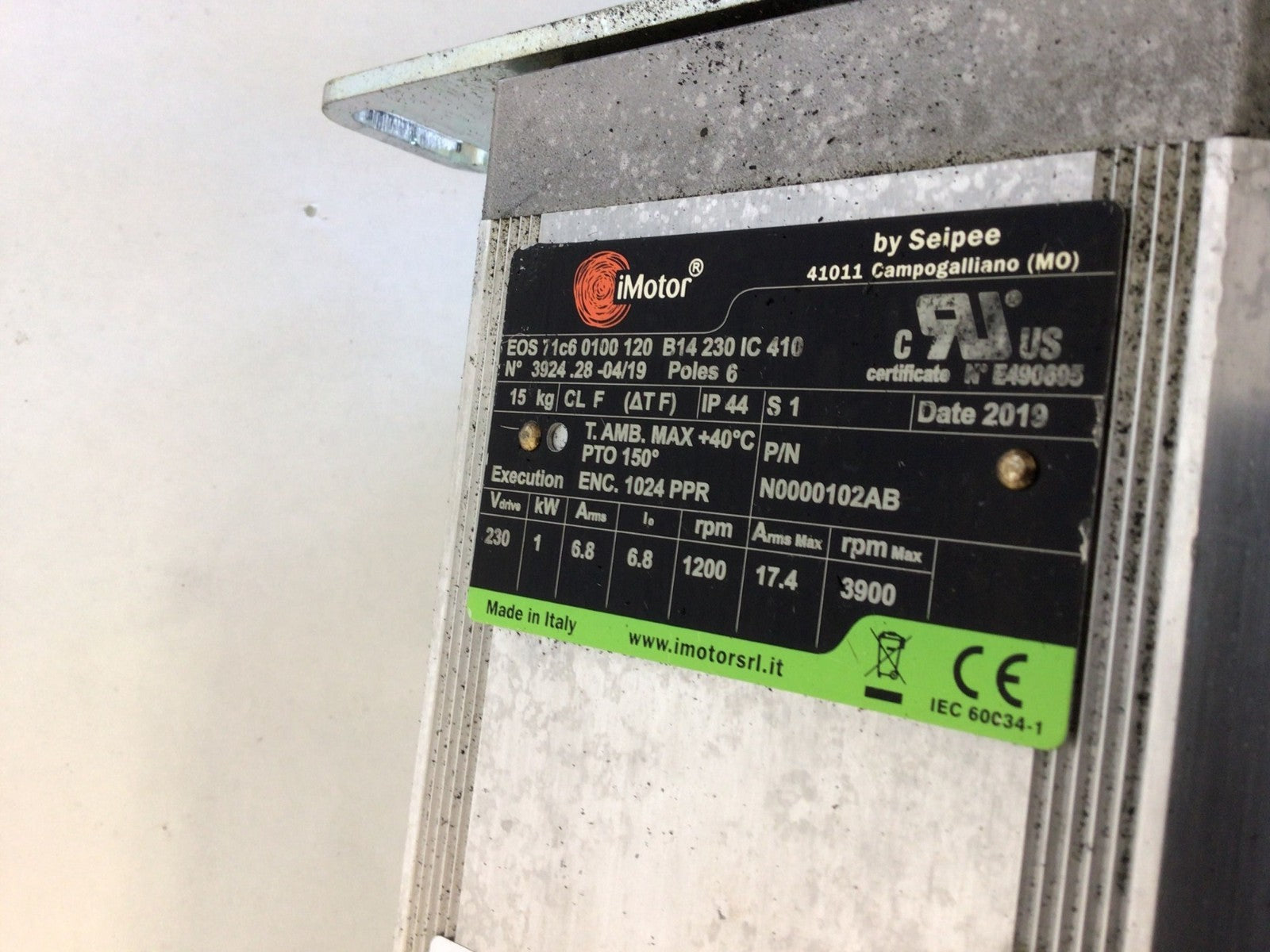

Motor Identification
Motor Series / Frame: EOS 71C6Mount: B14 Face Mount
Frame Size: 71
Serial Number: 3924.28-04/19
Part Number (P/N): N0000102AB
Mechanical Specifications
Mounting: B14 Face MountNumber of Poles: 6
Weight: 15 kg (33.1 lbs)
Insulation Class: F
Protection Rating: IP44
Duty Cycle: S1 (Continuous Duty)
Electrical Specifications
Rated Power: 1.0 kW (≈1.34 HP)Rated Current: 6.8 A
No-Load Current (Io): 6.8 A
Maximum Current: 17.4 A
Speed
Rated Speed: 1200 RPMMaximum Speed: 3900 RPM
Encoder
Encoder Resolution:1024 PPR (Pulses Per Revolution) This indicates the motor is equipped with an integrated incremental encoder for precise speed and position feedback, making it suitable for closed-loop inverter/servo-like control.Environmental Ratings
Maximum Ambient Temperature: +40°C (104°F)PTO Temperature: 150°C
Likely Application
Based on the integrated 1024 PPR encoder, B14 face mount, and 1200 RPM rating, this is not a standard off-the-shelf induction motor. It is a vector-duty AC motor designed for use with a Variable Frequency Drive (VFD) in commercial fitness equipment.Motors like this are commonly found in:
Commercial treadmillsIncline trainers
Medical treadmills
Other fitness equipment requiring precise speed feedback
