Item Condition: New
Hydra Fitness Exchange Miscellaneous Cardio RPM Speed Sensor Reed Switch 2-Pin Connector – 80mm (3.15") Length
"Have fitness repair parts to Sell?"
Use our wizard and list them for FREE on our exchange
OR
Sell them lot to us using this form
If so, have your model/serial number from your frame ready and click here.
Item Description
Condition New

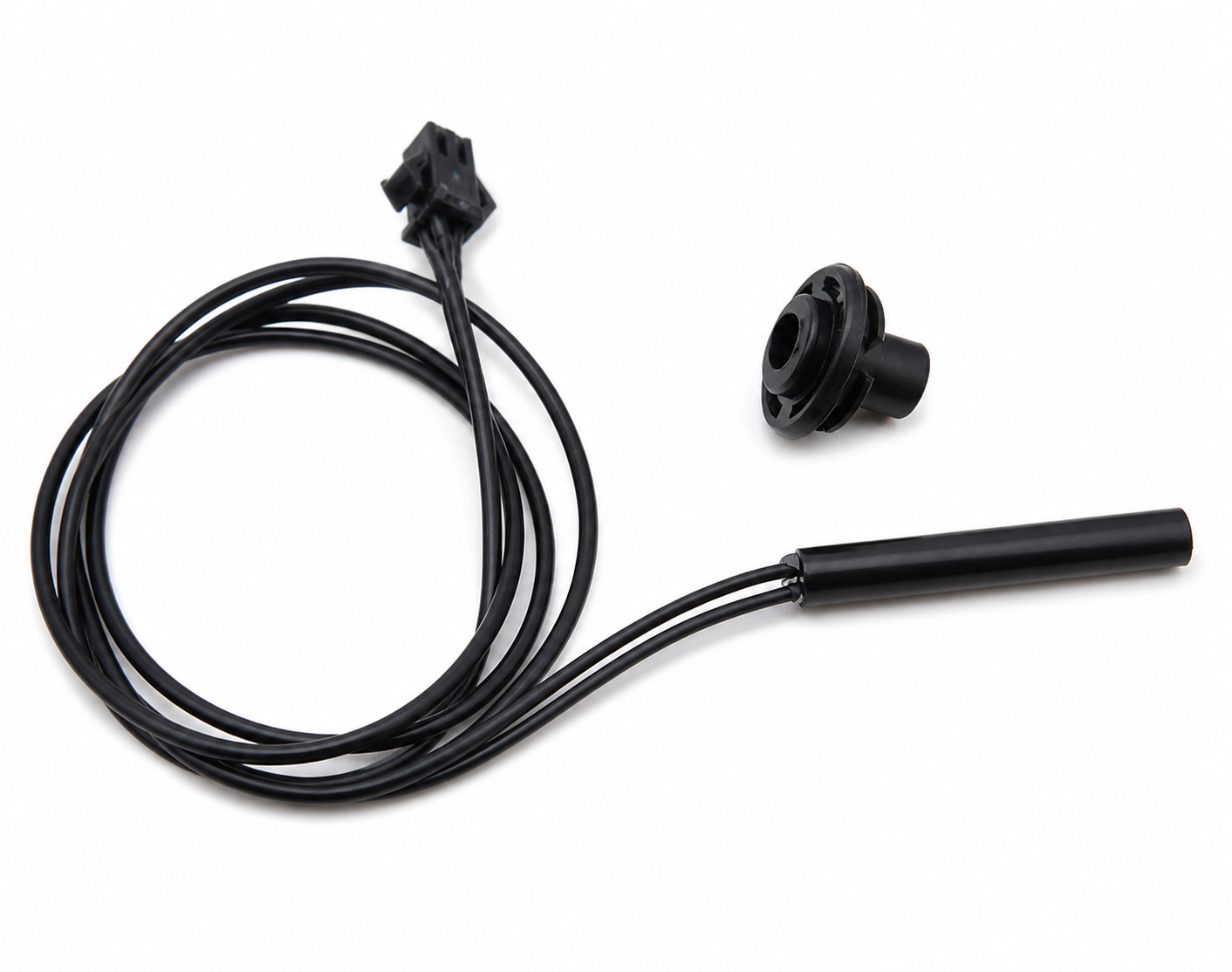

RPM Reed Speed Sensor – Barrel Style with Grommet
2-Pin Connector – 80mm (3.15") Length – Fitness Equipment Replacement
This barrel-style RPM reed speed sensor is designed for accurate motion detection on fitness equipment. Featuring a slide-in body with a removable frame mounting grommet, it allows easy installation and precise adjustment for optimal sensor alignment.
Key Features
- Barrel-Style Sensor: Cylindrical probe for accurate magnetic RPM detection
- 2-Pin Connector: Standard rectangular plug for broad compatibility
- Adjustable Mounting Design: Sensor slides in and out of the grommet for precise positioning
- Removable Frame Grommet: Designed for through-hole mounting applications
- Compact Form Factor: Ideal for tight installation spaces
- Durable Construction: Built for long-term use in fitness equipment
Dimensions
- Length of sensing probe (stick area): 35mm (1.38")
- Total length: 80mm (3.15")
Mounting Design (Important)
- Includes separate rubber/plastic grommet
- Grommet installs into frame hole
- Sensor barrel slides through grommet
- Allows:
- Easy installation
- Fine-tuning of sensor-to-magnet gap
- Quick replacement without removing hardware
Applications
Commonly used in:
- Treadmills – monitors belt speed via front roller or motor pulley
- Ellipticals – detects flywheel rotation and stride speed
- Exercise bikes (upright & recumbent) – measures pedal RPM/cadence
- Cardio equipment with magnetic speed sensing systems
Why Choose This Speed Sensor?
The adjustable barrel-and-grommet design makes this sensor easier to install and fine-tune than fixed-mount versions. It ensures accurate readings and reliable performance across a wide range of fitness machines.
Compatibility
- Compatible with many fitness equipment brands including:
- NordicTrack®
- ProForm®
- Horizon®
- Schwinn®
- Octane Fitness®
- XTERRA®
- Sunny Health & Fitness®
- Used across treadmills, ellipticals, and stationary bikes
- Fit depends on connector type, mounting style, and dimensions
⚠️ Fitment Note (Important)
To ensure proper fit, verify the following before ordering:
- Connector type: Must match your existing 2-pin plug
- Mounting style: Through-hole with grommet (barrel slide design)
- Sensor length: 80mm total / 35mm probe
- Alignment: Must line up with magnet (typically 2–5mm gap)
Do not rely on brand alone—many machines use similar sensors with slight variations.
