Item Condition: New
Cable Gym Pull Pop Pin knob 1-1-2" Thread of Pin 13-16" Fine Thread 1-4" Tip of Pin Dia 3-8"
"Have fitness repair parts to Sell?"
Use our wizard and list them for FREE on our exchange
OR
Sell them lot to us using this form
If so, have your model/serial number from your frame ready and click here.
Item Description
Condition New
M20 Indexing Plunger / Pull Pin Assembly - Measure First!
M20 Threaded Body with M12 Pull Knob Thread & 10mm Locking Pin
This heavy-duty indexing plunger is designed for commercial fitness equipment requiring secure positioning and repeatable adjustment of seats, back pads, support arms, footplates, and other movable components. The spring-loaded locking pin allows equipment adjustments while maintaining positive engagement and safe operation.
Unlike traditional pop pins, this style features a precision-machined steel body with a threaded pull knob assembly, making it ideal for high-use commercial strength equipment where durability and smooth operation are critical.

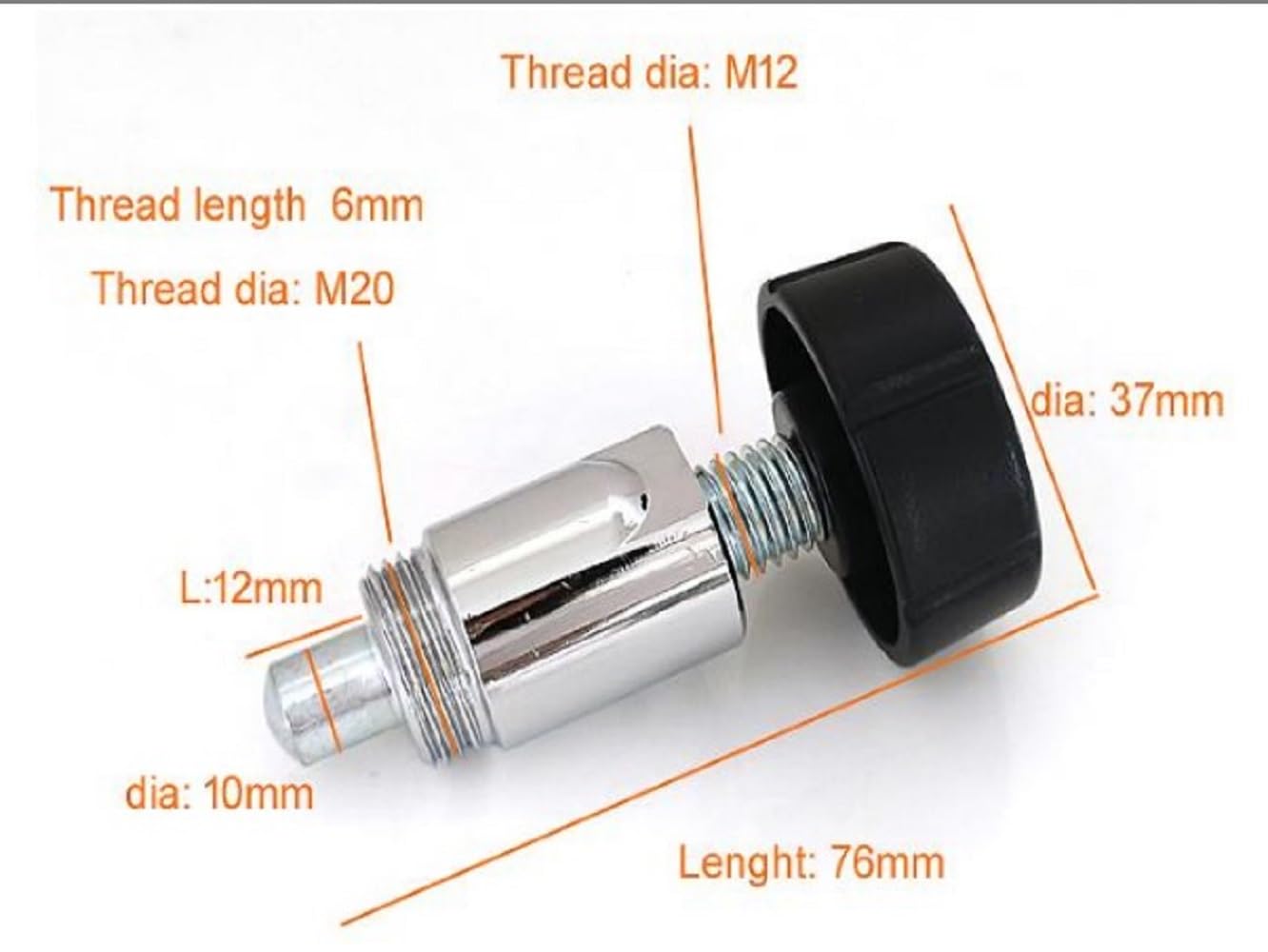

📐 Dimensions
- Overall Length: 76mm (3.00")
- Knob Diameter: 37mm (1.46")
- Body Thread Size: M20
- Body Thread Length: 6mm (0.24")
- Pull Knob Thread Size: M12
- Locking Pin Diameter: 10mm (0.39")
- Pin Projection Length: 12mm (0.47")
🔩 Key Features
Precision Indexing Plunger Design
Provides secure positioning and repeatable adjustment of equipment components.
Heavy-Duty Steel Construction
Machined metal body designed for commercial fitness equipment applications.
10mm Spring-Loaded Locking Pin
Delivers positive engagement and reliable locking performance.
Replaceable Threaded Knob Assembly
Features an M12 threaded pull knob connection for serviceability.
Commercial Grade Durability
Built for high-cycle use in gyms, rehabilitation centers, universities, and athletic facilities.
🏋️ Common Compatible Brands
This style of indexing plunger is commonly found on select equipment from:
- Life Fitness Signature Series
- Hammer Strength Select Series
- Hammer Strength MTS Series
- Cybex Eagle Series
- Cybex VR Series
- Matrix Magnum Series
- Matrix Aura Series
- Technogym Selection Series
- Technogym Element Series
- Precor Discovery Series
- Hoist ROC-IT Series
- Paramount Strength
- Legend Fitness
- TuffStuff Pro Series
- SportsArt Strength Equipment
🏋️ Common Applications
- Adjustable seat positioning
- Back pad adjustments
- Leg roller positioning
- Footplate adjustments
- Functional trainer arm settings
- Smith machine safety stops
- Support arm positioning
- Strength machine adjustment mechanisms
- Commercial fitness equipment restoration
⚙️ How It Works
-
Pull Knob to Retract Pin
The spring-loaded locking pin disengages from the adjustment hole. -
Reposition Equipment Component
Move the seat, pad, support arm, or assembly to the desired position. -
Release Knob
The pin automatically engages the nearest adjustment hole. -
Lock Securely in Place
Positive engagement helps maintain safe operation during exercise.
✅ Benefits
- Fast and secure equipment adjustments
- Precision-machined commercial construction
- Smooth spring-loaded operation
- Positive locking engagement
- Long service life in high-use environments
- Ideal replacement for worn or damaged indexing plungers
⚠️ Important Fitment Information
Please verify:
- M20 body thread size
- 6mm thread length
- 10mm locking pin diameter
- 12mm pin projection
- 76mm overall length
Many commercial fitness machines use similar indexing plungers, but exact dimensions are required for proper fit and safe equipment operation.
